Garmin GT51M-THP SS TH Pair DownV/SideV 500W (CHIRP 260/455kHz) Trad. 600W (Mid CHIRP 80-160) Transducers - 12-Pin [010-01966-11]

  • Sale
  • Regular price $1,699.99
  • 2 available


GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W
(CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz)
Transducers with Temp (12-Pin)

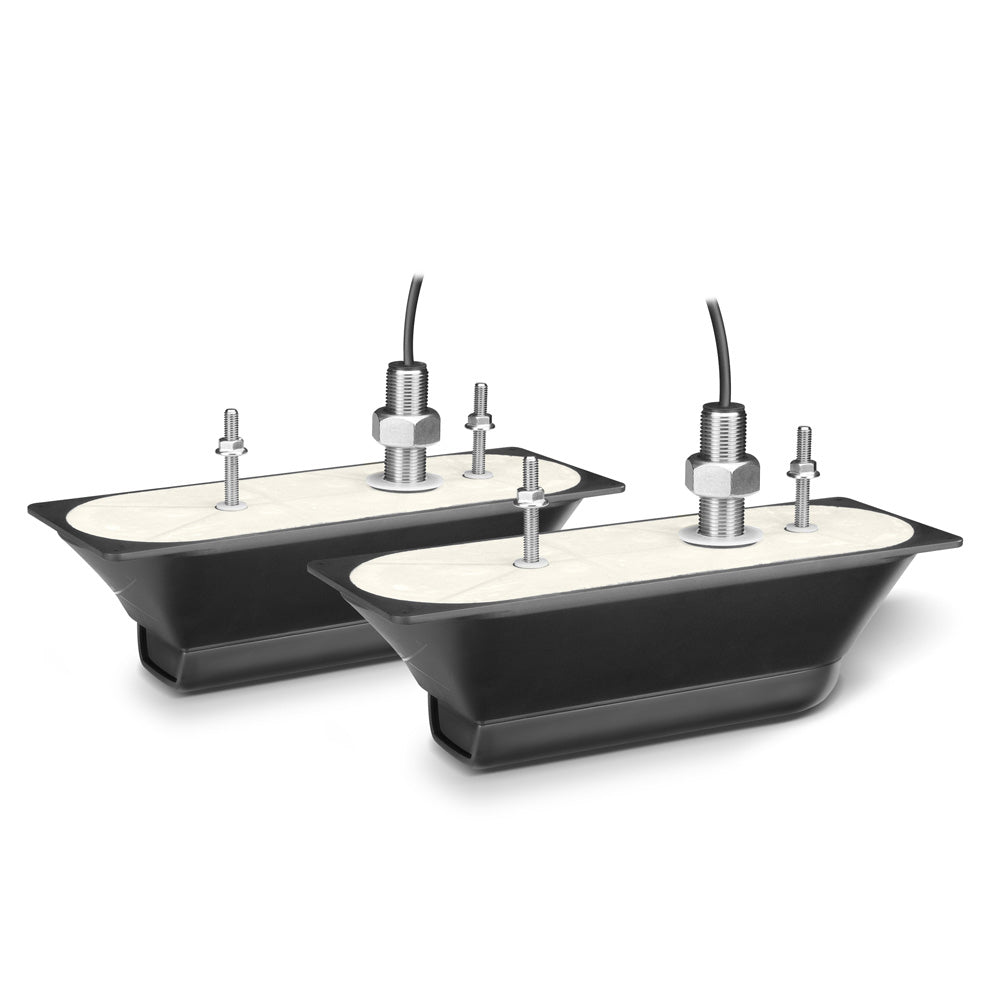

This thru-hull transducer pair provides ultra-clear sonar pictures of
objects, structure and fish that pass below your boat. These traditional
CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for
depth performance and rough conditions.

The CHIRP DownVü/ SideVü elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 260/455 kHz. The
traditional CHIRP sonar has a power rating of 600 W and operating
frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in
fast-response temperature sensor. For hull deadrises less than 25 degrees.

GT51M-THP includes a 12-pin port/starboard transducers with stainless steel
stems, fairing blocks, Y-cable, bushings, mounting hardware and installation
instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

  • GPSMAP® 7607xsv
  • GPSMAP® 7608xsv
  • GPSMAP® 7610xsv
  • GPSMAP® 7612xsv
  • GSD™ 25 Premium Sonar Module

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Imagining: Standard/Down/Side
  • Chirp: Medium/Non Traditional
  • Cable Length (Feet): 5' + 30' y-extension
  • Temperature: Yes
  • Speed Included: No
  • Pins: 12
  • Mounting Style: Thru-Hull
  • Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs
  • UPC: 753759152932

Owner's Manual (pdf)
