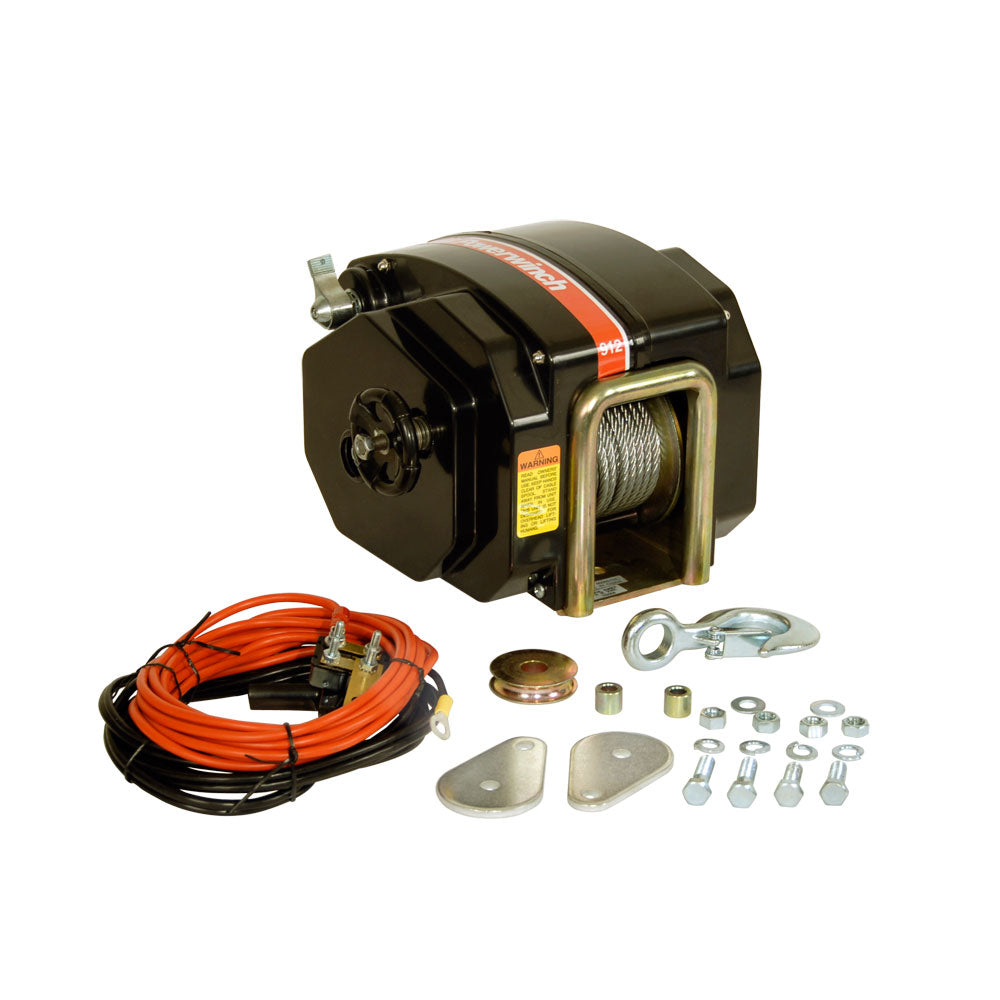

Powerwinch 912 Trailer Winch [P77912]

  • Sale
  • $653.00
  • Regular price $823.83


12v Electric Trailer Winch

The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.

  • Remote power-in/freewheel-out operation
  • 60 amp standard wiring harness
  • Pulley block for double line applications
  • One year limited warranty


Model 912
  • suggested max boat length
  • Max. boat weight of 11,500 lbs
  • 4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)


Specifications

  • Max. Boat Weight: 11500
  • Line Speed: 8 FPM
  • Vertical Lift Capacity: 4000 lbs
  • Remote Control: No
  • Light: No
  • Double Line Capacity: 7500 lbs
  • Gear Ratio: 450:1
  • Power Source: 12V
  • Circuit Breaker: 60 amp
  • Unit Weight: 35 lbs
  • Depth: 10"
  • Width; 10"
  • Height: 8"
  • Cable Length and Diameter: 40' x 7/32"

    Specifications:

    • Pull Strength (lbs): 4000 lbs
    • Manual/Electric: Electric
    • Gear Ratio: 450:1
    • Box Dimensions: 9"H x 11"W x 15"L WT: 34.5 lbs
    • UPC: 810123840090

    Quick Guide (pdf)
    Owner's Manual (pdf)
